DUSTEC-500X

Real-Time Dust Monitor

Portable environmental monitoring equipment for real-time particulate measurement, particle counting and selected environmental parameters.

PM1.0 / PM2.5 / PM10
Portable
Real-Time
IP65

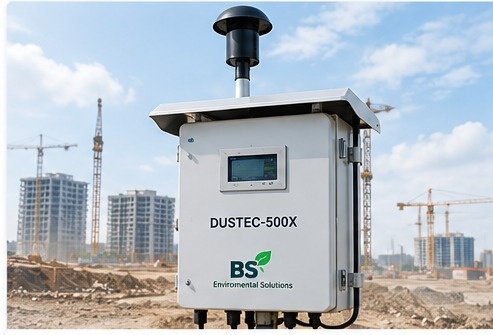

DUSTEC-500X Real-Time Dust Monitor
What It Measures

Monitoring Parameters

Hover over a parameter to see more information.

PM1.0
PM2.5
PM10
SPM
Particle Counting
Gas Monitoring
Temperature
Relative Humidity
Hover over a parameter

Detailed information will appear here.

Designed for Field Use

Product Features

Practical features for portable environmental monitoring.

◉

Real-Time Monitoring

Continuous real-time monitoring of particulate matter and environmental parameters.

↗

Portable Design

Compact and lightweight design suitable for field deployment and environmental surveys.

⚡

Battery Powered

Rechargeable battery operation for locations without permanent power availability.

▣

Data Logging

Monitoring data can be stored on the integrated MicroSD card.

⇄

Remote Data Transmission

Optional RS-485 and GPRS communication can support remote data transmission.

⚙

Adjustable Calibration

Software-based calibration factor adjustment can support different environmental conditions.

Built Around Your Requirement

Highly Customisation-Friendly

Every monitoring project can have different requirements. With our in-house technical team, BS Environmental Solutions can work with clients to discuss customised requirements for equipment configuration, features, size, shape and other project-specific requirements.

Custom Features
Size & Dimensions
Shape & Form Factor
Sensor Configuration
Project Requirements
In-House Technical Support
Technical Data

Technical Specifications

Key technical characteristics at a glance.

Measurement Principle
Optical light scattering
Dust Range
0.01–10,000 µg/m³
Particle Size
0.3–10 µm
Particle Count
Up to 10,000/sec
Flow Rate
1.2 LPM
Data Storage
MicroSD
Logging
1–10 sec
Temperature
-20°C to +50°C
Humidity
0–95% RH
Battery
Up to 8 hours
Extended Battery
Optional up to 24 hours
Communication
RS-485 / GPRS
Protection
IP65
Weight
Approx. 1 kg
Dimensions
24 × 20 × 11 cm
Display
20 × 4 LCD
Where It Can Be Used

Applications

Hover over an application to see more.

Construction
Mining & Quarry
Industrial Pollution
Environmental Surveys
Occupational Health & Safety
Indoor Air Quality
Traffic Pollution
Research & Academic
Hover over an application to learn more.

Need the DUSTEC-500X for Your Project?

Talk to BS Environmental Solutions about equipment purchase, rental, installation and project-specific monitoring requirements.
